A-A-51185 Blades, Band Saw, Composite Steel, Metal Cutting, Matrix High Steed Steel (S/S By Asme-B94.51)This description covers, composite steel band saw blades with the cutting edges manufactured of matrix high speed steel. The blades shall be of the standard, commercial type that are used for sawing ferrous and non-ferrous metals in a productive environment.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

A-A-51185

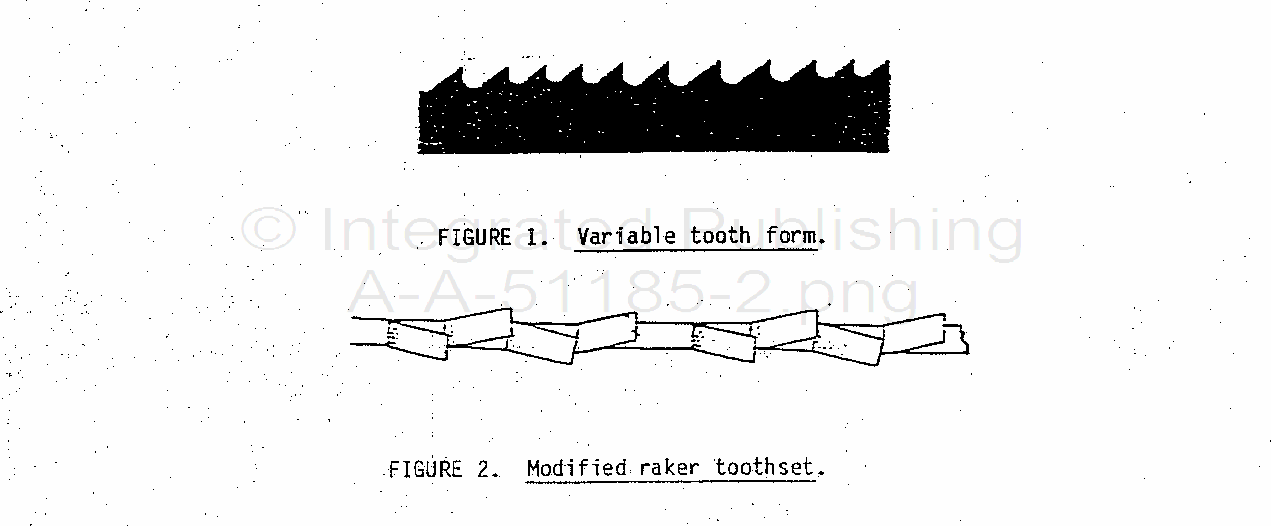

3. Tooth form. With the exception of the variable tooth form, tooth forms shall conform to ASME B94.51M. The variable tooth form, see figure 1, is defined as a standard tooth with a variation of the number of teeth per inch.

[IMAGE HERE]

4. Blade toothset. Unless otherwise specified (see ordering data), the toothset of the blade to be furnished shall be selected from table I. The raker toothset shall conform to ASME B94.51M. The modified raker toothset shall be defined as a transverse setting of individual teeth as illustrated in figure 2, one to the righty, one to the left, one to the right, one to the left and one straight. More or less teeth set to the right or left may be provided in accordance with the toothset configurations currently available in the commercial market.

5. Blade width. Unless otherwise specified (see ordering data), the width of the blade to be furnished shall be selected from table II. The tolerance on blades of 3/4 inch widths and less shall be in conformance with ASME B94.51M. The tolerance on 1.000 inch width blades shall be not less than
